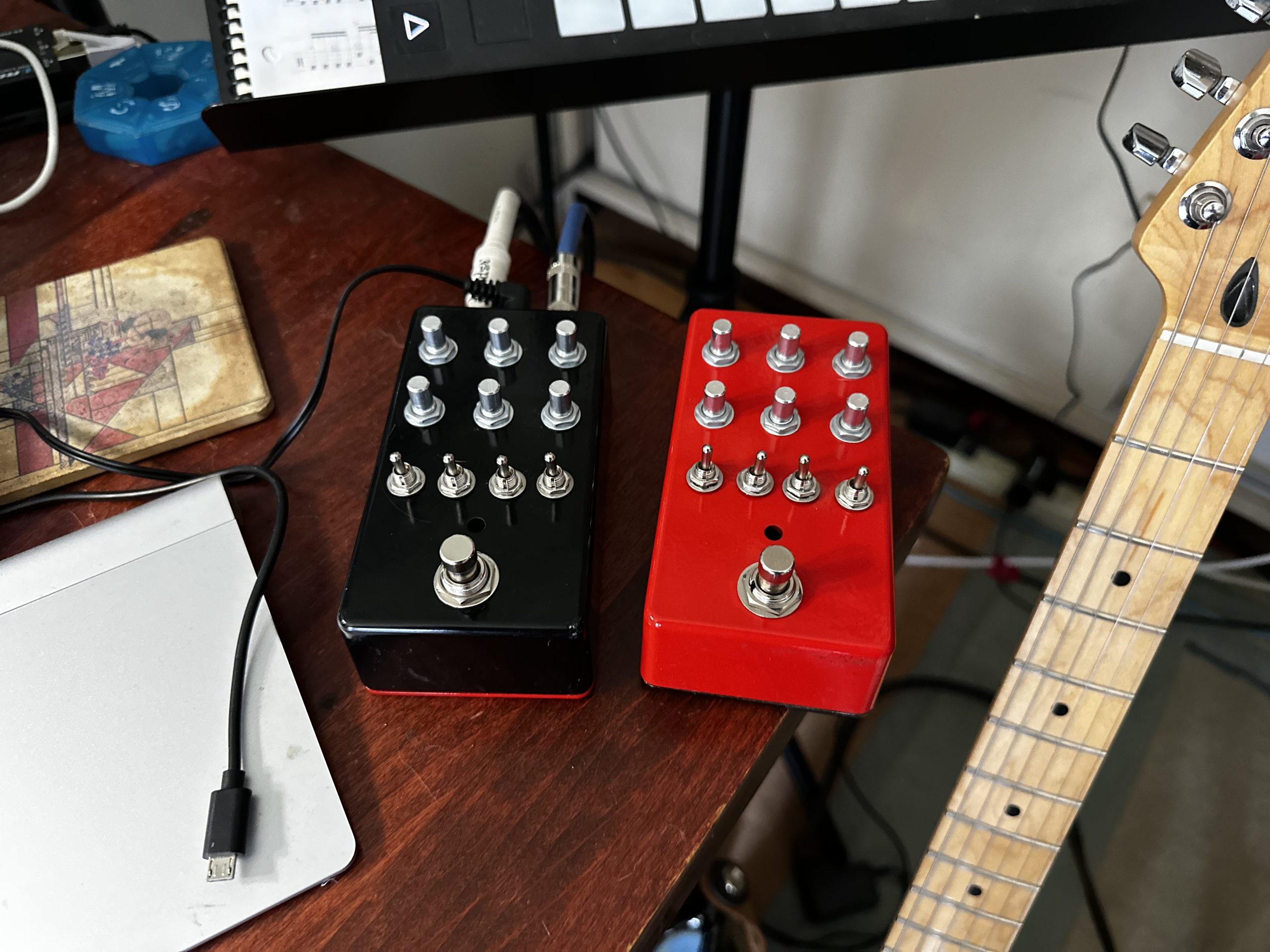

Skateboard-P Complete Effects Pedal

Description

Version 0.0

Based on the PedalPCB Terrarium circuit board.

• 6 Potentiometers
• 4 Toggle Switched
• 1 LED
• 1 Footswitch
• Mono

Version 0.1

Based on the Guitar Pedal 125b project by Keith Shepherd

• OLED Display
• Rotary Encoder for Display Navigation
• 6 Potentiometers
• Up to 2 Foot switches
• Up to 2 Leds
• Standard 9v center pin negative power jack
• 125B size pedal board friendly enclosure!
• Buffered Stereo Input and Outputs for Guitar Level signals
• Relay based “True Bypass” switching
• TRS Mini MIDI Input and Outputs

itK – Skateboard-P

Powered by Daisy Seed

Community and Support

Here are some ways to get support and connect with other users and developers.

• GitHub – https://github.com/kennethjacksontech – You can submit an issue at GitHub on the repo that best matches your topic.
• KennethJackson.Tech Wiki – https://github.com/KennethJacksonTech/Wiki/wiki
• Skateboard Web Programmer (Site) – https://kennethjackson.tech/programmer/ – Requires Google Chrome
• Skateboard Web Programmer (GitHub)- https://kennethjacksontech.github.io/Programmer/ – Requires Google Chrome
• Powered by – Electro-Smith Daisy Seed

Logic PCB

Height from top of case 10mm

Distance from side of case 1mm

3-Knobs

1-Toggle Switch

I/O PCB

Height from top of case 22mm

Distance from side of case 1mm

2-1/4 Stereo Jacks

1-Switch 3P3T

1-LED

https://docs.pedalpcb.com/project/Terrarium.pdf

Enclosure

125B

https://www.taydaelectronics.com/black-a-pedalpcb-125b-bare-drilled-enclosure-type-6-1.html

https://www.taydaelectronics.com/red-a-pedalpcb-125b-bare-drilled-enclosure-type-6-1.html

BLACK Drilled Enclosure for PedalPCB 3 Knob Type 1

RED Drilled Enclosure for PedalPCB 3 Knob Type 1

Version 0.0 BOM – Bill of Materials

Bill of Materials Version 0.1
